JCB series slewing ring
Specification and drawing of JCB light series slewing bearing (SL21,22,23)

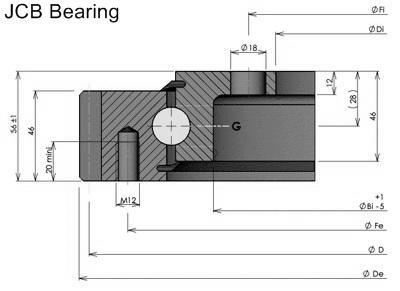

SL21 external gear
Click "Bearing No." to view its drawing
|
External Diameter
|
Internal Diameter
|
Height
|
Weight(Kg)
|
Module
|
Num. of Teeth
|
Bearing No.
(view drawing)
|
|
505
|
304
|
56
|
32
|
5
|
99
|
|
|
640
|
434
|
56
|
44
|
6
|
105
|
|
|
742
|
534
|
56
|
52
|
6
|
122
|
|
|
840
|
634
|
56
|
60
|
6
|
138
|
|
|
950
|
734
|
56
|
68
|
8
|
117
|
|
|
1046
|
834
|
56
|
76
|
8
|
129
|
|
|
1198
|
984
|
56
|
86
|
8
|
148
|

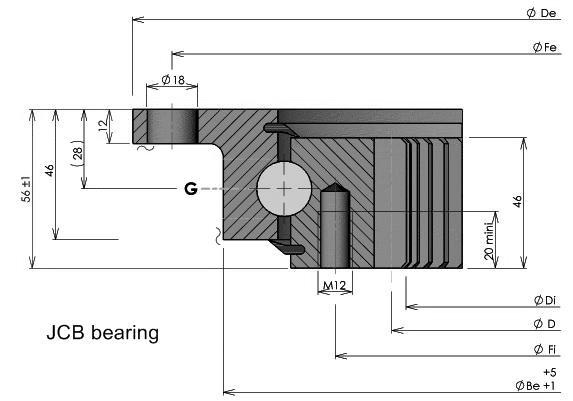

SL22 internal gear
Click "Bearing No." to view its drawing
|
External Diameter
|
Internal Diameter
|
Height
|
Weight(Kg)
|
Module
|
Num. of Teeth
|
Bearing No.
(view drawing)
|
|
518
|
325
|
56
|
31
|
5
|
67
|
|
|
648
|
445
|
56
|
41
|
6
|
76
|
|
|
748
|
546
|
56
|
48
|
6
|
93
|
|
|
848
|
649
|
56
|
55
|
6
|
110
|
|
|
948
|
736
|
56
|
63
|
8
|
94
|
|
|
1048
|
840
|
56
|
71
|
8
|
107
|
|
|
1198
|
986
|
56
|
80
|
8
|
125
|

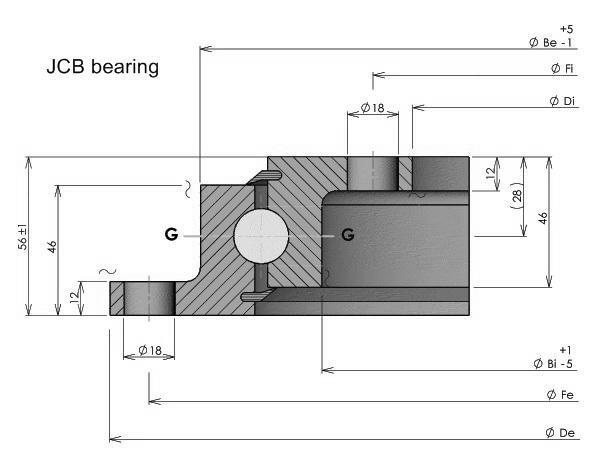

SL23 without gear
Click "Bearing No." to view its drawing
|
External Diameter
|
Internal Diameter
|
Height
|
Weight(Kg)
|
Module
|
Num. of Teeth
|
Bearing No.
(view drawing)
|
|
518
|
304
|
56
|
23
|
*
|
*
|
|
|
648
|
434
|
56
|
34
|
*
|
*
|
|
|
748
|
534
|
56
|
40
|
*
|
*
|
|
|
848
|
634
|
56
|
46
|
*
|
*
|
|
|
948
|
734
|
56
|
52
|
*
|
*
|
|
|
1048
|
834
|
56
|
58
|
*
|
*
|
|
|
1198
|
984
|
56
|
67
|
*
|
*
|
