JCB series slewing ring
Specification and drawing of JCB light series slewing bearing(SLBP31,32,33)

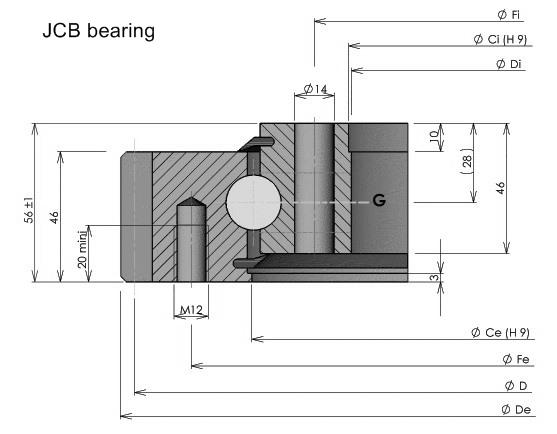

SLBP31 external gear
Click "Bearing No." to view its drawing
|
External Diameter
|
Internal Diameter
|
Height
|
Weight(Kg)
|
Module
|
Num. of Teeth
|
Bearing No.
(view drawing)
|
|
505
|
342
|
56
|
32
|
5
|
99
|
|
|
640
|
472
|
56
|
46
|
6
|
105
|
|
|
742
|
572
|
56
|
55
|
6
|
122
|
|
|
840
|
672
|
56
|
62
|
6
|
138
|
|
|
950
|
772
|
56
|
71
|
8
|
117
|
|
|
1046
|
872
|
56
|
78
|
8
|
129
|
|
|
1198
|
1022
|
56
|
91
|
8
|
148
|

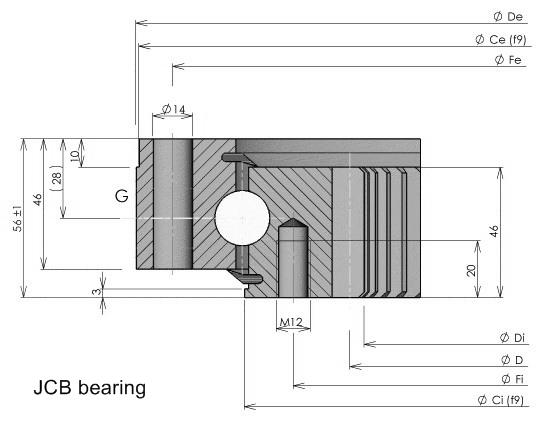

SLBP32 internal gear
Click "Bearing No." to view its drawing
|
External Diameter
|
Internal Diameter
|
Height
|
Weight(Kg)
|
Module
|
Num. of Teeth
|
Bearing No.
(view drawing)
|
|
486
|
325
|
56
|
31
|
5
|
67
|
|
|
616
|
445
|
56
|
43
|
6
|
76
|
|
|
716
|
546
|
56
|
51
|
6
|
93
|
|
|
816
|
649
|
56
|
58
|
6
|
110
|
|
|
916
|
736
|
56
|
70
|
8
|
94
|
|
|
1016
|
840
|
56
|
76
|
8
|
107
|
|
|
1166
|
986
|
56
|
92
|
8
|
125
|

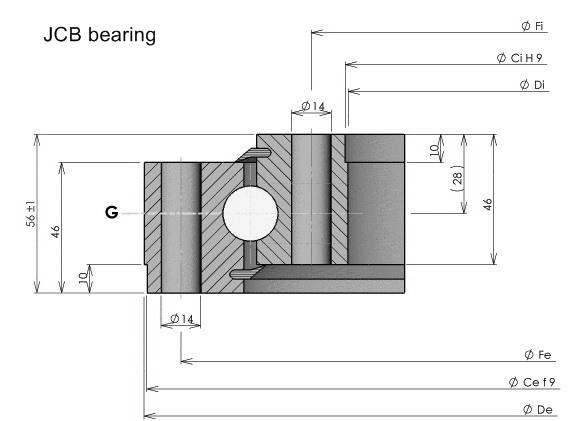

SLBP33 without gear
Click "Bearing No." to view its drawing
|
External Diameter
|
Internal Diameter
|
Height
|
Weight(Kg)
|
Module
|
Num. of Teeth
|
Bearing No.
(view drawing)
|
|
486
|
342
|
29
|
32
|
|
|
|
|
616
|
472
|
38
|
46
|
|
|
|
|
716
|
572
|
45
|
55
|
|
|
|
|
816
|
672
|
52
|
62
|
|
|
|
|
916
|
772
|
60
|
71
|
|
|
|
|
1016
|
872
|
67
|
78
|
|
|
|
|
1166
|
1022
|
78
|
91
|
|
|
