Series 7 slewing bearing

KH- series slewing bearing

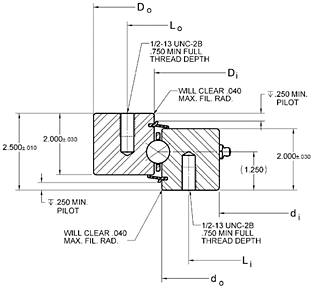

Without gear

Series 7	OUTLINE DIMENSIONS AND WEIGHT
	Do	di	H	Hi/Ho	G
P/N					APPROX.
	(in)	(in)	(in)	(in)	(lbs)
KH-125P	16.500	8.625	2.500	2.000	80
KH-166P	20.500	12.750	2.500	2.000	105
KH-225P	26.700	18.500	2.500	2.000	150
KH-275P	31.700	23.500	2.500	2.000	185
KH-325P	36.700	28.500	2.500	2.000	220

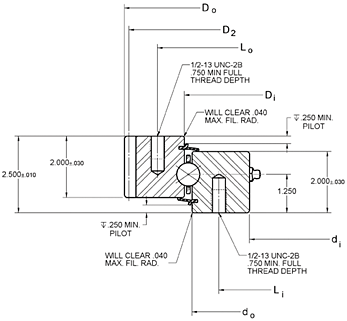

With external gear

Series 7	OUTLINE DIMENSIONS AND WEIGHT
	Do	di	H	Hi/Ho	G
P/N					APPROX.
	(in)	(in)	(in)	(in)	(lbs)
KH-125E	16.500	8.625	2.500	2.000	75
KH-166E	20.500	12.750	2.500	2.000	100
KH-225E	26.700	18.500	2.500	2.000	140
KH-275E	31.700	23.500	2.500	2.000	175
KH-325E	36.700	28.500	2.500	2.000	205
