Product name： Slewing ring bearing

Type： All Series

Precision grade： Custom's

Product description： four-point contact ball slewing ring bearing , double direction angular contact thrust ball slewing ring bearing, cross roller slewing ring bearing.

Slewing ring bearings are ball or cylindrical roller bearings that can accommodate axial, radial and moment loads acting either singly or in combination and in any direction. They are not mounted on a shaft or in housing; the rings, which are simply bolted on the seating surface are available in one of three executions: (1) Without gears. (2)With an internal gear. (3)With an external gear. Slewing ring bearings can perform both oscillating (slewing) movements as well as rotating movements.

We adopt China state standard (JB/T 2300-1999) to manufacture slewing ring bearing, also we can adopt other standard (such as API specification 2C sixth edition, march 2004 ) according to customer requirement.

Four-point contact ball Slewing Ring Bearing

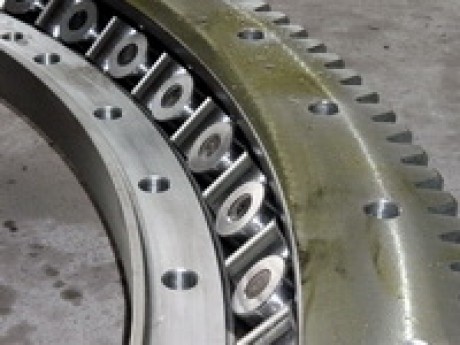

Cross roller Slewing Ring Bearing

Double row angular contact ball Slewing Ring Bearing

Ball and roller Slewing Ring Bearing

Triple-row cylindrical roller Slewing Ring Bearing

RKS series Slewing Ring Bearing

Application

Product range of Slewing Ring Bearing

Bearing number		Size range		Structure characteristic
Bearing number	Former bearing number	Inner diameter	Outer diameter	Structure characteristic
010.00.00	78000	More 200mm	Less than 5000mm	Four-Point Contact Ball Slewing Ring Bearing(without gear)
011.00.00 012.00.00	178000	More 200mm	Less than 5000mm	Four-Point Contact Ball Slewing Ring Bearing(with external gear)
013.00.00 014.00.00	278000	More 200mm	Less than 5000mm	Four-Point Contact Ball Slewing Ring Bearing(with internal gear)
020.00.00	578000	More 500mm	Less than 5000mm	Double Direction Angular Contact Thrust Ball Slewing Ring Bearings（without gear）
021.00.00 022.00.00	678000	More 500mm	Less than 5000mm	Double Direction Angular Contact Thrust Ball Slewing Ring Bearings（with external gear）
023.00.00 024.00.00	778000	More 500mm	Less than 5000mm	Double Direction Angular Contact Thrust Ball Slewing Ring Bearings（with internal gear）
110.00.00	79000	More 350mm	Less than 5000mm	Cross roller Slewing Ring Bearing (without gear)
111.00.00 112.00.00	179000	More 350mm	Less than 5000mm	Cross roller Slewing Ring Bearing (with external gear)
113.00.00 114.00.00	279000	More 350mm	Less than 5000mm	Cross roller Slewing Ring Bearing (with internal gear)
130.00.00	539000	More 500mm	Less than 5000mm	Triple-row cylindrical roller Slewing Ring Bearing (without gear)
131.00.00 132.00.00	639000	More 500mm	Less than 5000mm	Triple-row cylindrical roller Slewing Ring Bearing (with external gear)
133.00.00 134.00.00	739000	More 500mm	Less than 5000mm	Triple-row cylindrical roller Slewing Ring Bearing (with internal gear)
